Cecil (Fullplan kit)

Cecil Plan Package

Fullplan Kit

Inclusions:

• Floor Plan with dimensions(feet & meters)
• Roof plan
• 2 perspectives
• 4 elevations
• 2 sections
• Schedule of doors and windows
• Foundation Plan
• Roof Beam Plan
• Typical structural details
• Masonry wall detail
• Roof framing plan
• Sewer line layout
• Water line layout
• lighting layout
• Convenience outlet layout
• Material list

*Has all the dimensions you need to replicate this house design

Note: This is not a Blueprint, Materials and finishes specified in these drawing are typical and should be verified by your Builder or Architect / Designer before starting the building process. Philein Budgethomes is not responsible for any issues or damages during any building project.

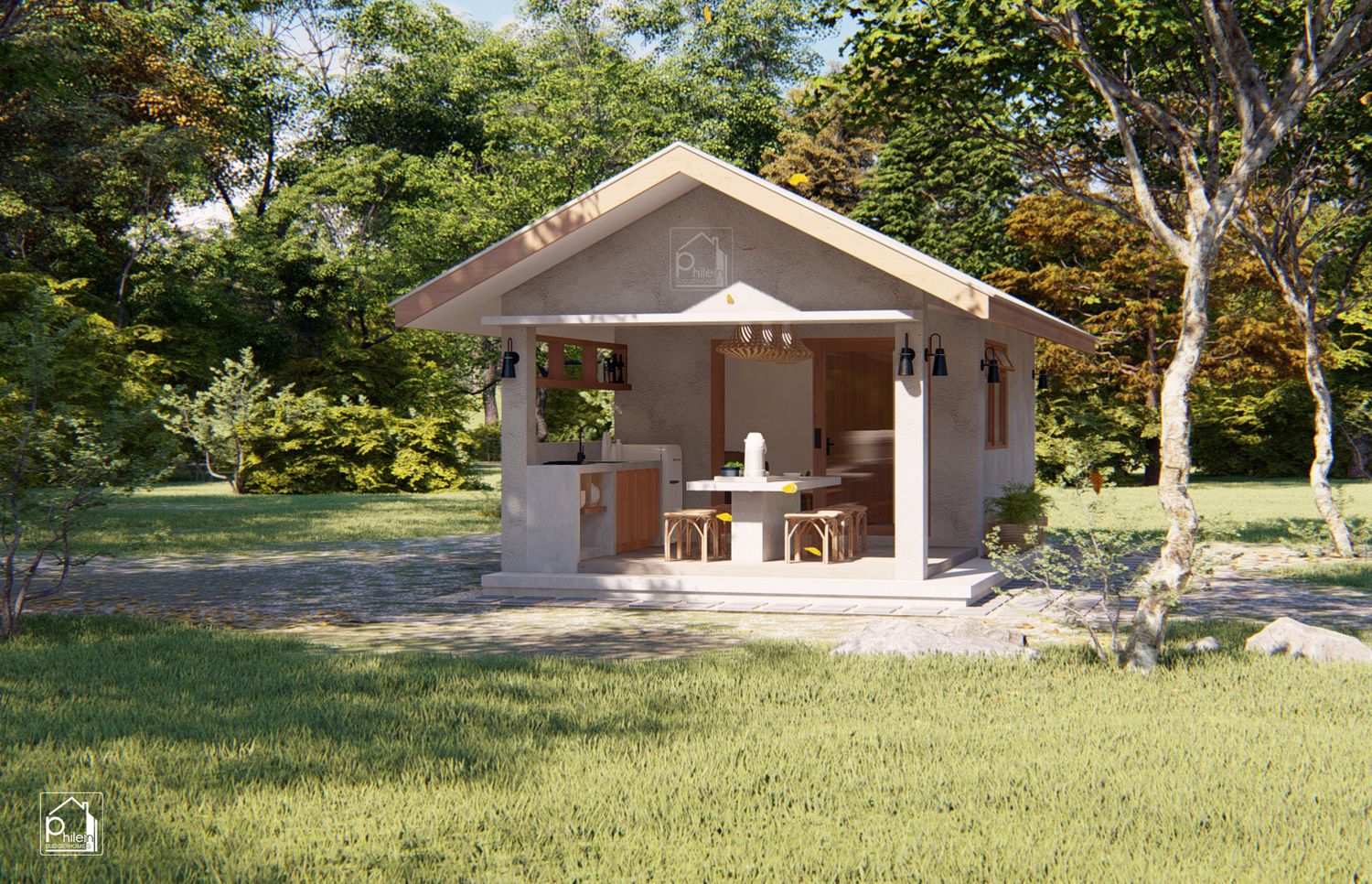

The Cecil House Model is a budget-friendly flat that's perfect for singles and small families. Intended to make the interior breathable, Cecil's structure is a combination of concrete and wood, making it a dreamy "FARMHOUSE." Make the most out of your small lot by following this model!

More about the model

- 4m x 8m floor dimension

- 33 sqm.

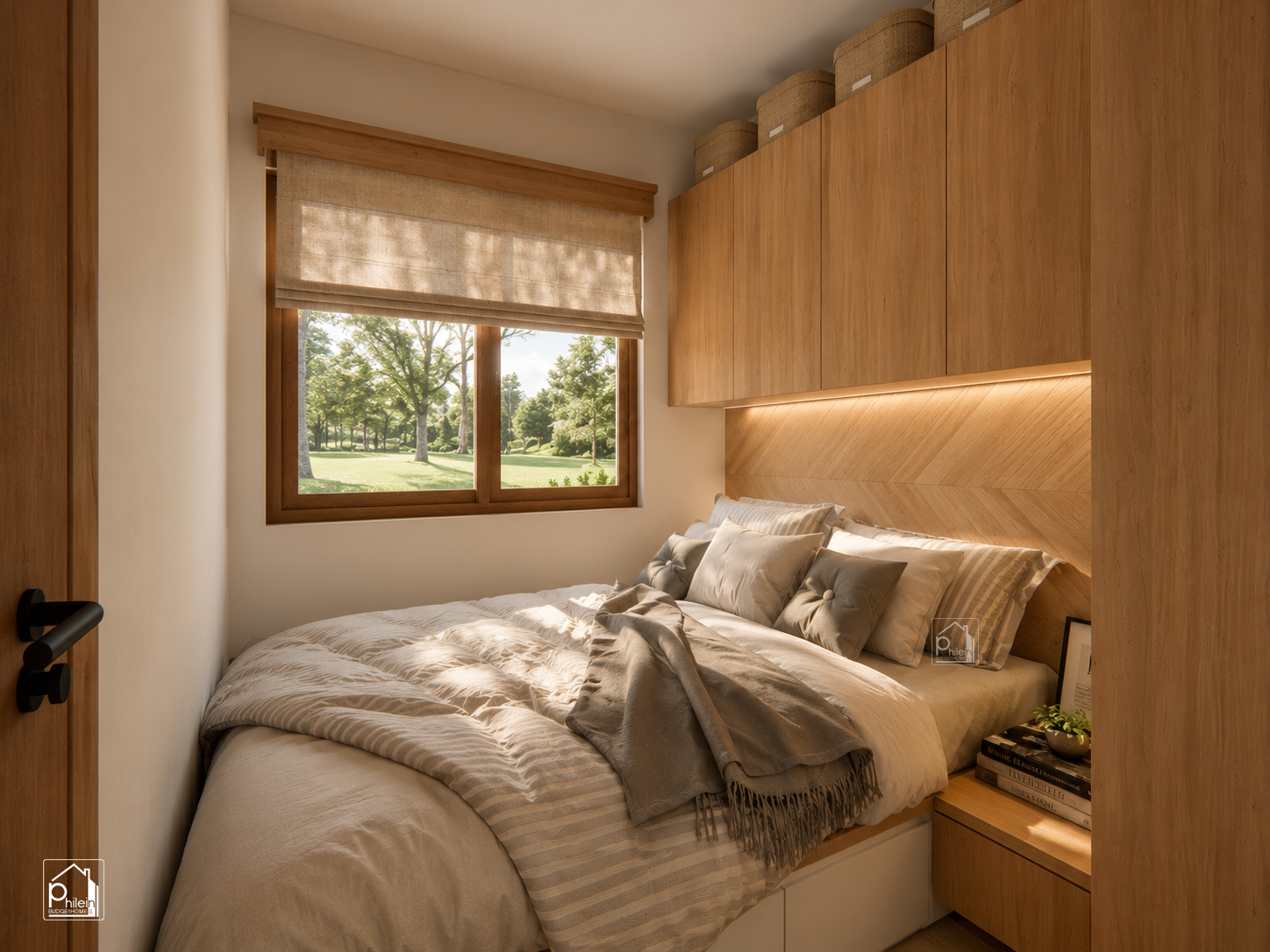

- 1 bedroom

- 1 toilet and bath

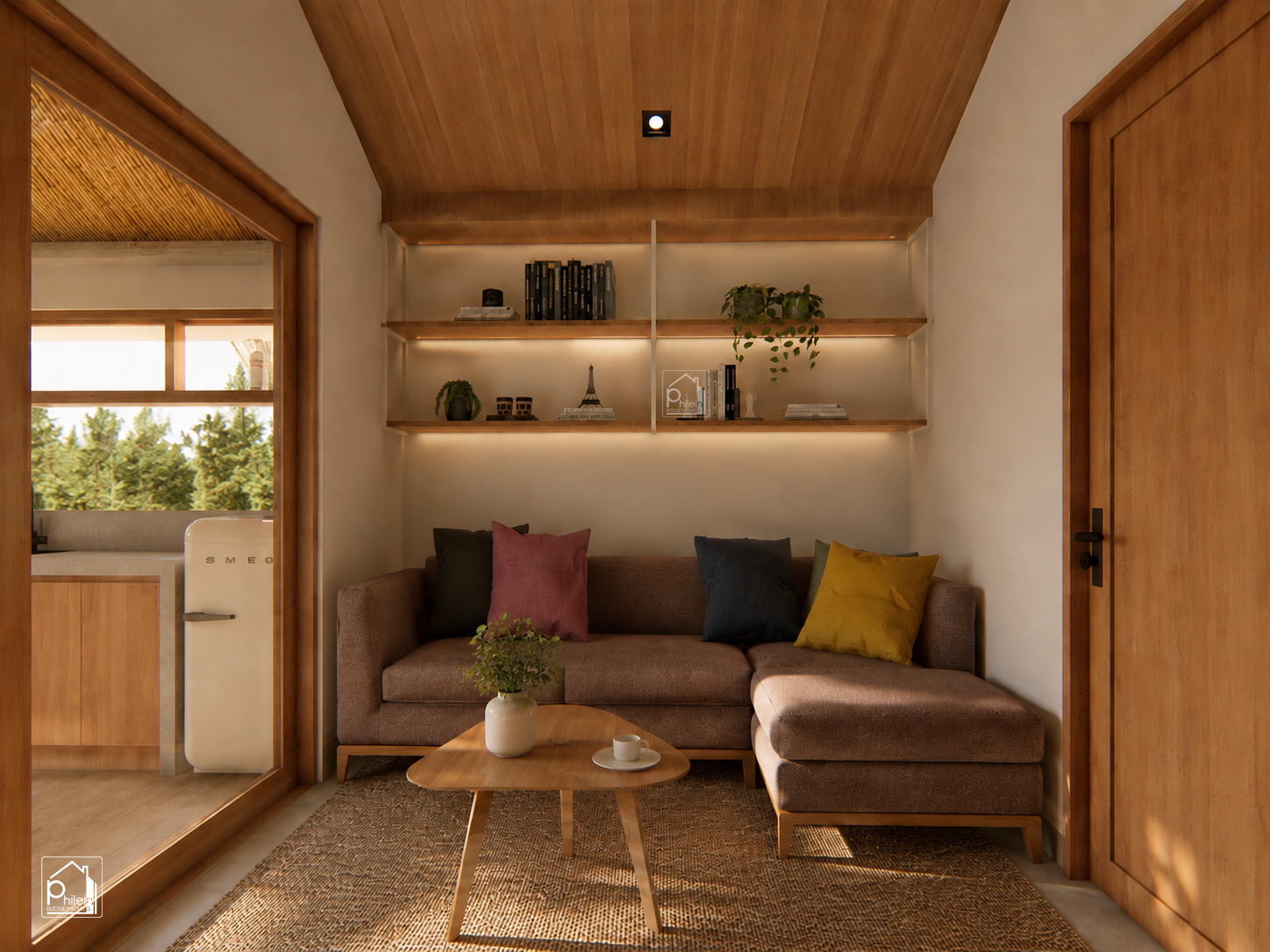

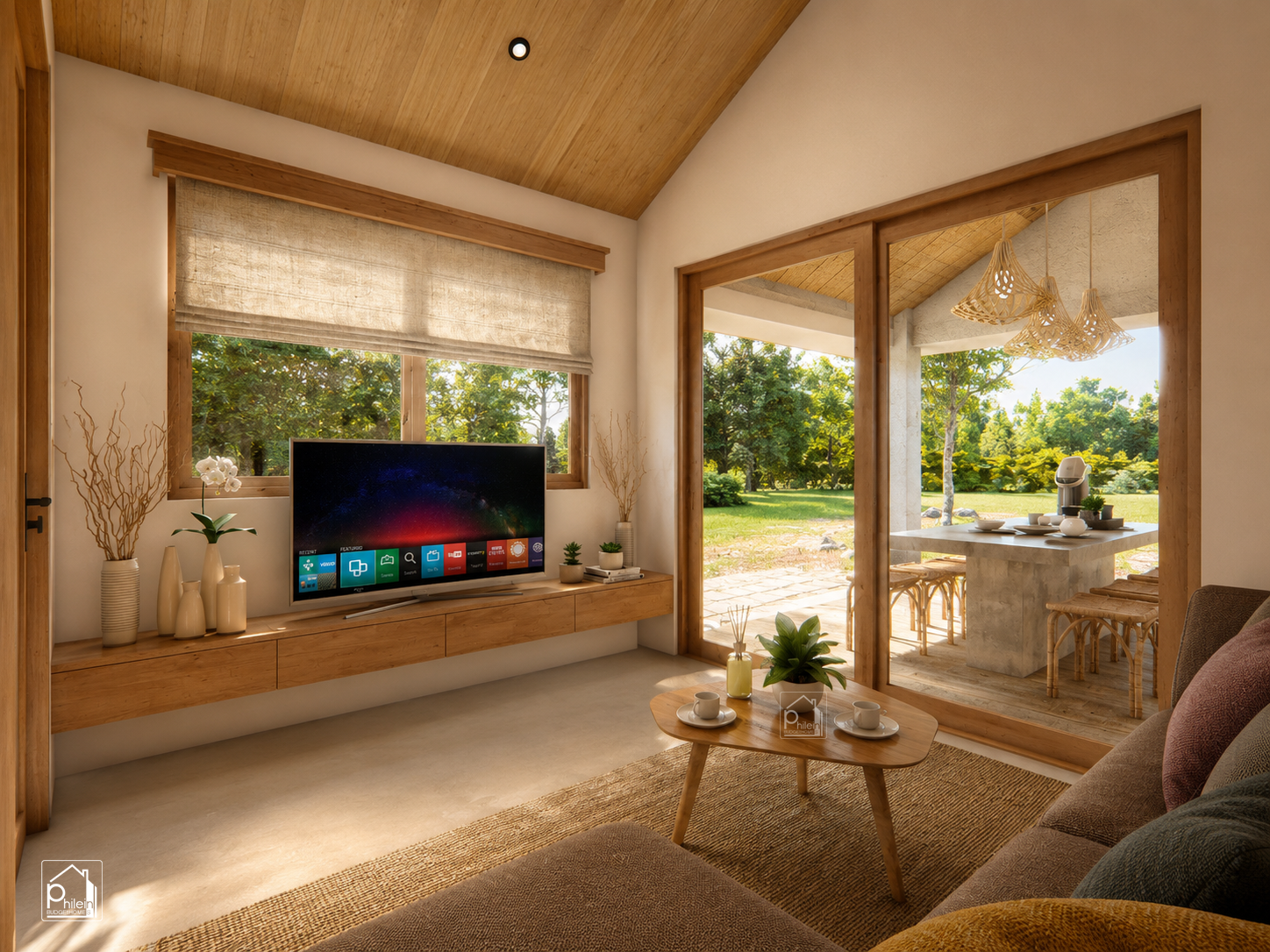

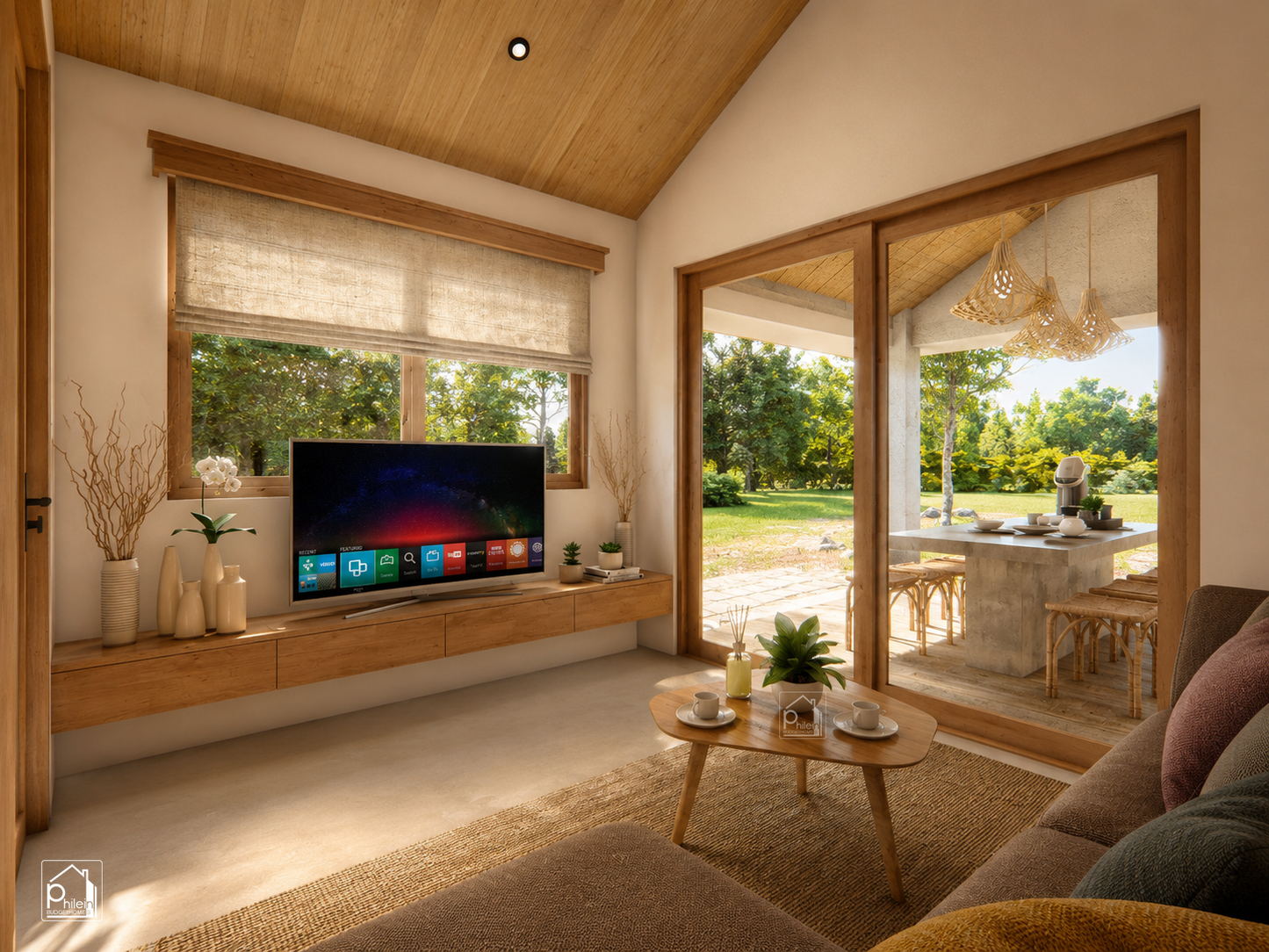

- Living Area

- Dining Area

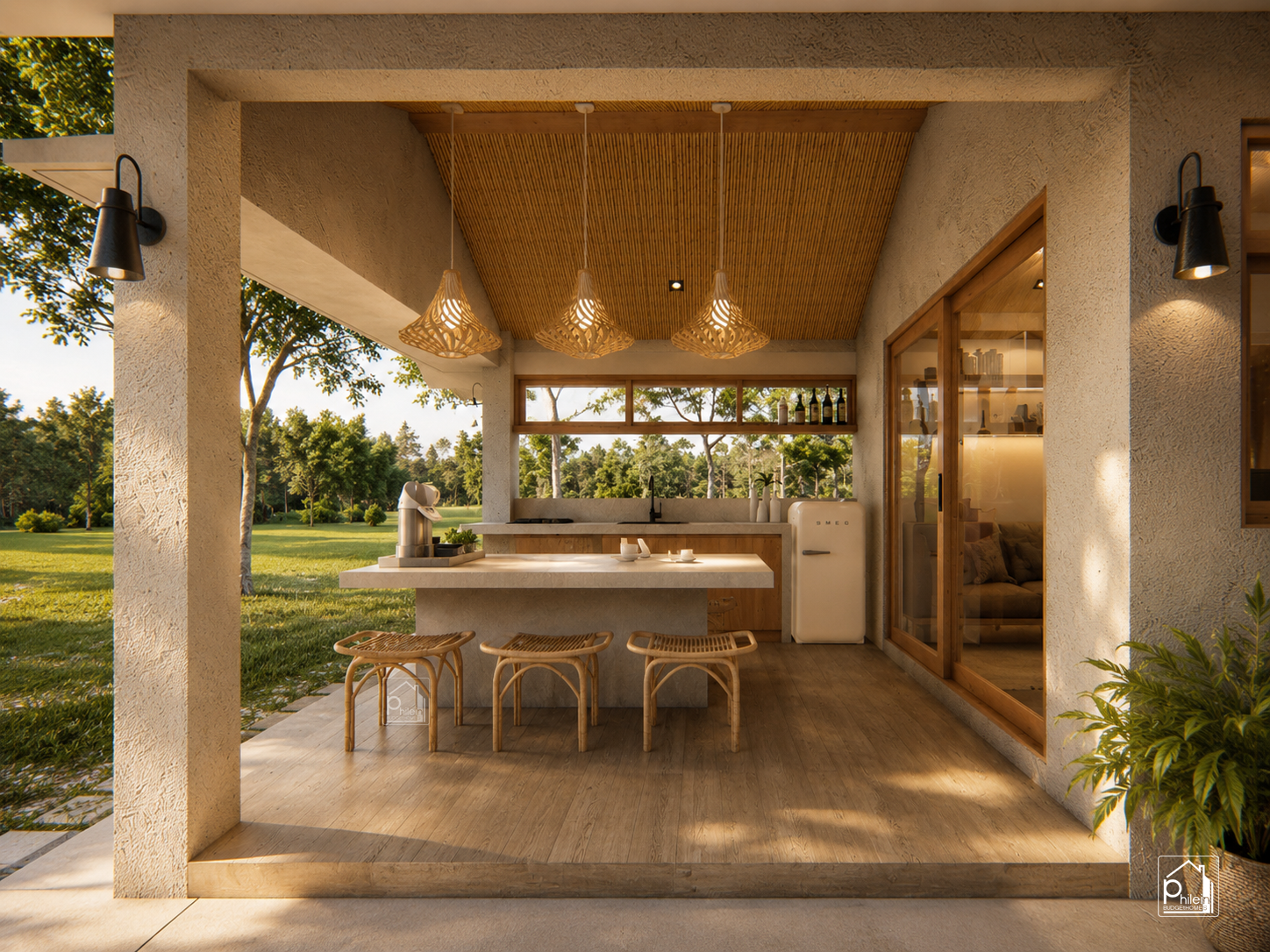

- Kitchen

- Construction cost (basic finish) is estimated at more or less PHP600,000

Link to 3D animation video:

N O T E

This is a DIGITAL DOWNLOAD, PDF FILES will be sent to your EMAIL ADDRESS ones you make a successful payment. All files are printable to SCALE on A4 paper size. This purchase is for PERSONAL USE ONLY. © Design is copyright of Philein Budgethomes.
